ARB RIDER AWG-5000 PULSE GENERATOR


Fast Pulse Generator – up to 5Vpp amplitude

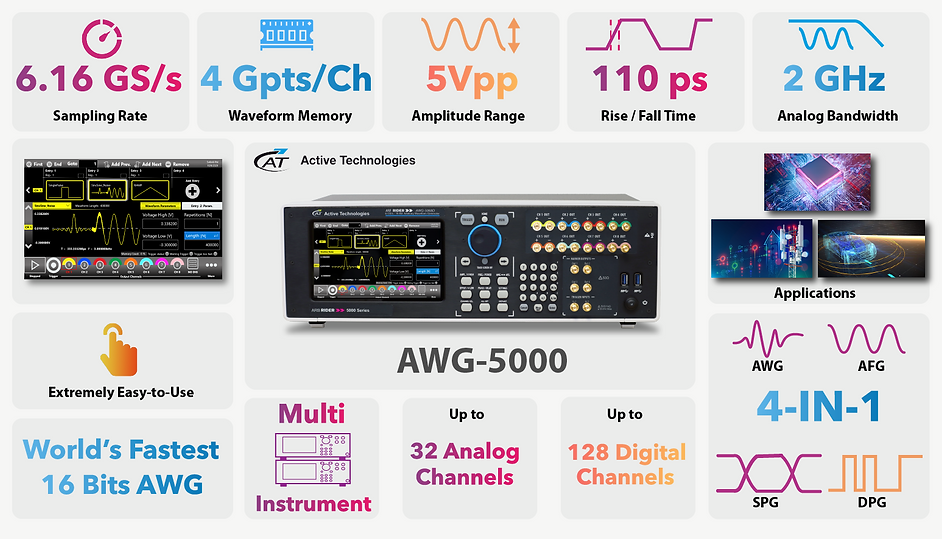

The ARB Rider AWG-5000 Series is the world’s fastest 2, 4 and 8 channels pulse generators equipped with a 16 bit resolution Digital to Analog converter. Single pulse or double pulse can be programmed in few seconds thanks to the easy-to-use user interface.  AWG-5000 Pulse Generator series offers 6.16 Gs/s update rate, 5Vpp output voltage range, 110 ps Rise/Fall time, and up to 4 GSamples memory depth, making this product the ideal choice for Automotive, Aerospace & Defense, Big Physics and Semiconductor Test applications.

Up to 8 analog channels per unit and up to 32 digital lines (TTL or LVDS standards) allow the user to create a mixed-signal generation setup to generate analog and digital stimuli.

No Compromise on analog performances: the fast rise time of 110ps can be achieved at maximum amplitude of 5Vpp.

Moreover, the Serial Data Pattern Generator option, allows you to generate a stream of binary information through the front end SMA connectors with an update rate of 1.54 Gbps: built-in PRBS sequences, modulation features, transition shaping, and the flexibility of a powerful analog front-end makes the SPG the perfect tool for the most challenging applications.

A dedicated intra-chassis synchronization bus, allow multi-instrument synchronization up to 4 units: 32 analog channels and 128 digital channels for the most powerful mixed-signal generator in the world.

Models


AWG-5068D: 6.16 GS/S  |  16 BITS  |  8 CHANNEL PULSE GENERATOR


7" Capacitive Touch Screen Display

Soft Keyboard

4 SMA Marker Outputs

2 SMA Trigger Inputs

8 SMA Differential Analog Output Connectors

Pulses for All Your Needs

Whether it is generating a complex pulse train, a series of radar pulses, pulsed RF signals with impairments, Gaussian pulses,multi-level pulses, double pulses for IGBT/Mosfet experiments, pulses for Advanced Research and Quantum computing, the AWG-5000 is the ideal partner for all your most complex tests and cutting-edge applications.

Highlights

  • Up to 5Vpp into 50 Ohm Pulse Amplitude with ± 2.5V hardware offset

  • 110 ps Rise and Fall Time

  • Minimum Pulse Width: 230 ps

  • Shape easily your Pulse Transitions


Quantum Computing and RF Wireless

The AWG-5000 is the right choice for the frontier of science and technology experiments and cutting-edge challenges like Quantum, High Energy Physics, Optical and RF Wireless Communication.

The AWG-5000 Series instrument can create virtually any signal – analog or digital, ideal or distorted, standard or custom. You can easily build complex RF/IF/IQ waveform or generate serial data streams on your PC and transfer it to the AWG.

Highlights

  • Minimum delay between Trigger In and Analog Out

  • Up to 32 analog channels and 128 digital channels fully synchronized

  • Built-in sequencer with conditional/unconditional/dynamic jump features, two independent Trigger Inputs, up to 4 Marker outputs

Radar, LiDAR Design and EW

Wideband radar and electronic warfare systems need high fidelity signals to replicate real-world situations and complex environment scenarios.

Moreover, nowadays automotive solutions need to create accurate and reliable tests to prove safety under a variety of test conditions is key: LiDAR is one of the strategic components for these kinds of solutions.

Key Features

  • Generate Radar  test signals with excellent spurious performance

  • Create Electronic Warfare complex scenarios with up to 16384 sequencer entries and Advanced Sequencer conditional/unconditional jumps.

  • Build up LiDAR signal testing for aerospace & defense, automotive and mobile devices solutions

  • Create test waveforms using the Waveform Editor software or import them using third-party applications like MatLab, Labview, .NET languages, etc.


Waveform Editor: Powerful and Easy

The Waveform Editor allows you to create easily the most complex shapes for your radar pulses, physical research pulses, real-world signals, and complex environment signals. It is included in the standard software package.

Key Features

  • Generate easily the most complex analog and digital signals

  • Create your waveforms remotely on your PC

  • Full integration with the True-Arb software

Multi-Instrument Synchronization

You can synchronize up to 4 units to build a system made of 32 analog channels and 128 digital channels fully synchronized and integrated with the True-Arb software.

Main Features

  • Synchronize up to 4 units: 32 Analog channels and 128 Digital channels

  • Affordable price per channel

  • Easy to use Multi-Instrument control through True-Arb software

Technical Specifications

  • 6.16 GS/s,  16 Bit Vertical Resolution

  • Minimum Edge time down to 110 ps

  • Maximum dynamic range up to 5Vpp into 50 ohms

  • Up to 4 Gpts per Channel

  • up to 32 Digital Channels synchronous with analog Channels

  • SW User Interfaces: Simple Rider for AFG mode and Simple True Arb for AWG mode

Test With Confidence

Superior Testing

  • 7″ Touch Screen display and Soft Keyboard

  • 2, 4 or 8 Analog Channels + 8 Digital Channels (optional)

  • Full synchronization between analog and digital channels

  • Advanced sequencer and waveform editor included in the basic price

  • Create Easily waveforms and pulses with Simple Rider UI
