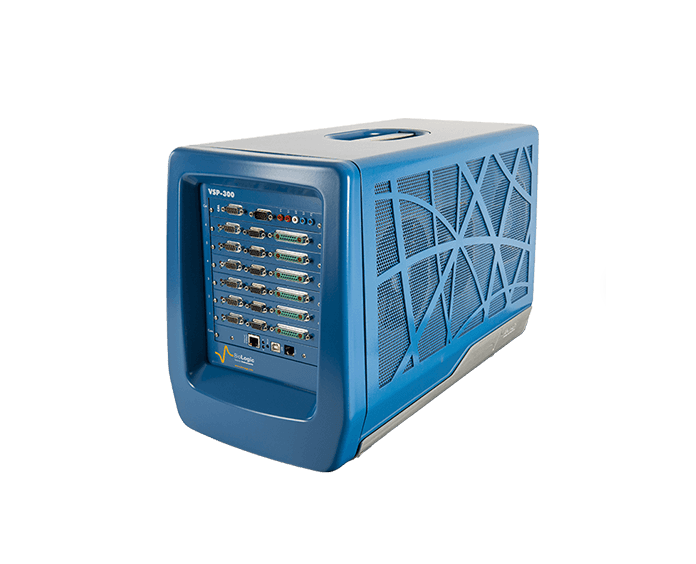

VSP-300
The VSP-300 is a six channel Premium range potentiostat and FRA with EIS to 11 MHz in a compact footprint. Each channel can take an ultra-low current cable, and up to 4 booster boards can be fitted in parallel in one chassis.
Key specifications
Compliance | ±12 V ; ±49 V with 1A/48V booster |
Control voltage | ± 10 V ; ±48 V with 1A/48V booster |
Voltage resolution | 1 µV on 60 mV range |
Current ranges | 500 mA to 10 nA (standard); down to 1 pA (Ultra Low Current) |
Maximum current | ±500 mA (standard); up to 120 A with four HCV-3048 |
Current resolution | 760 fA (standard) |
Low current | 6 ranges from 100 nA to 1 pA with resolution to 76 aA |
Frequency range | 11 MHz down to 10 µHz |
Best acquisition time | 12 µs with EC-Lab Express; 1 µs with ARG option |
