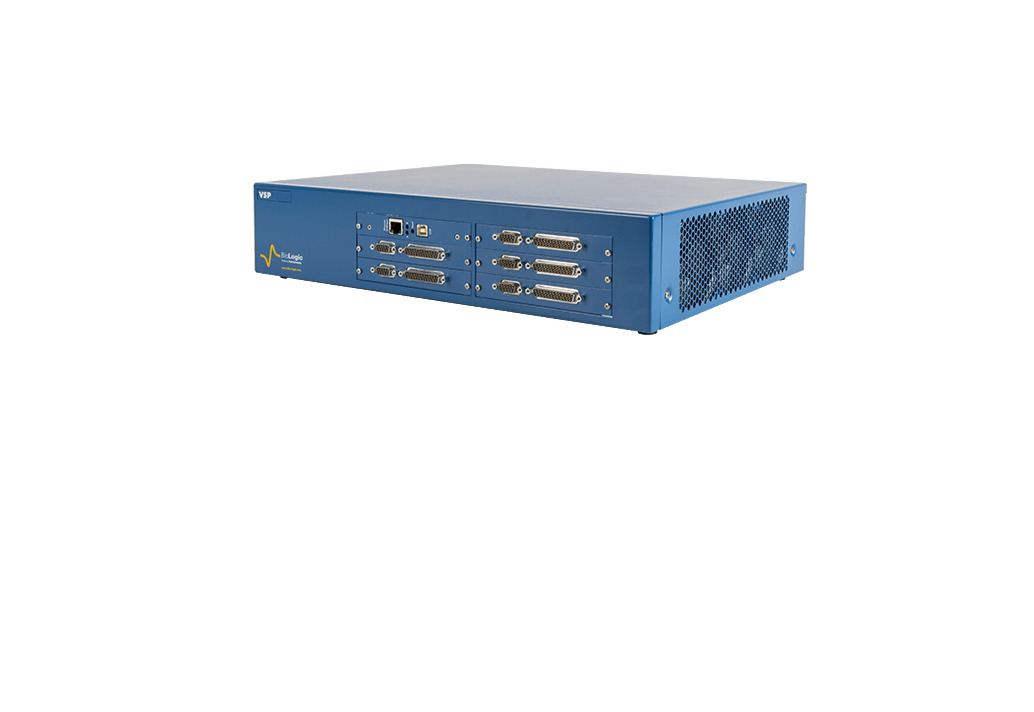

VSP

The VSP is a five channel modular electrochemical workstation. Each channel can be fitted with EIS, low current and booster options, so it can meet the needs of almost any electrochemistry lab.

Key specifications

Control voltage
±10 V adjustable between[-20; to +20] V (standard); up to 60 V with FlexP0060/FlexP0160
Voltage resolution
5 µV on 200 mV range
Compliance
±10 V adjustable between [-20; to +20] V (standard)
Current ranges
±400 mA to ±10 µA
Maximum current
±400 mA; up to 800 A with four FlexP0012
Current resolution
0.004 % of the range (min 760 pA)
Frequency range
1 MHz down to 10 µHz
Best acquisition time
20 µs with EC-Lab Express
