TOPAZ-Pico

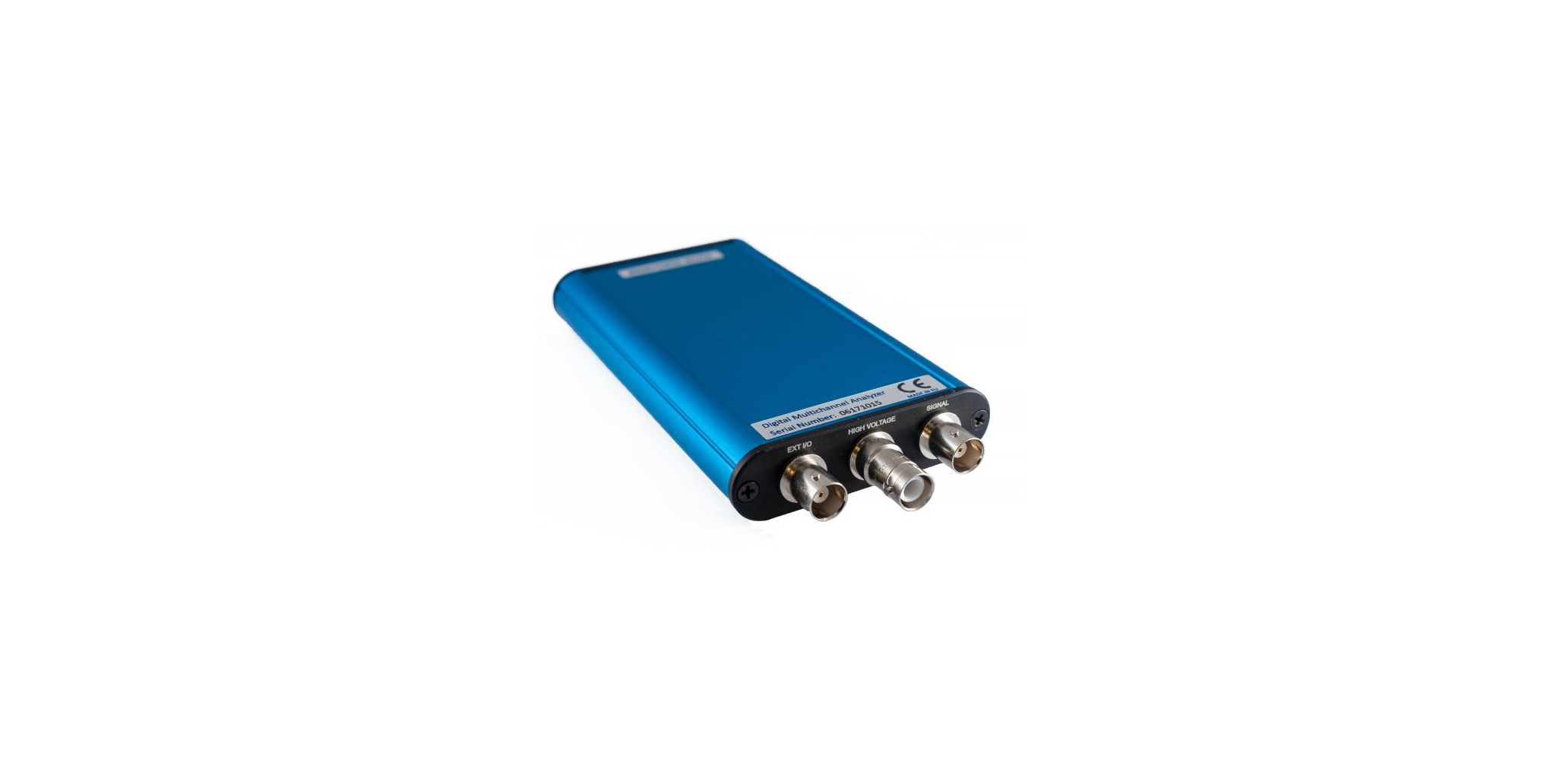

The TOPAZ-Pico is a compact, stand-alone digital multichannel analyser that performs pulse height analysis on signals from scintillation detectors. It is available in a pocket-size aluminium case or as an OEM board, making it equally suited to portable instruments and integration into your own systems. Acquisition modes are Pulse Height Analysis (PHA) and Multi-Channel Scaling (MCS), with up to 4096 channels. Analog gain is adjustable from 1 to 16, and the built-in high voltage supply reaches 1500 V. Compatible detectors include NaI(Tl), LaBr3(Ce) and LaCl3(Ce) scintillators. It connects over USB 2.0 (mini type B). The cased version measures 107 x 72 x 19 mm and weighs under 150 g, while the bare PCB is 80 x 60 mm. Acquisition software is included, and Windows and Linux libraries are available on request. Typical uses include handheld spectrometers, teaching labs, environmental surveys and OEM radiation monitors. To obtain TOPAZ-Pico pricing, or to discuss an OEM project, contact ProDigitek.
Key specifications
Acquisition modes | Pulse Height Analysis (PHA) and Multi-Channel Scaling (MCS) |
Channels | Up to 4096 |
Analog gain | 1 to 16 |
High-voltage supply | Up to 1500 V |
Detectors | Scintillators such as NaI(Tl), LaBr3(Ce), LaCl3(Ce) |
Interface | USB 2.0 (mini type B) |
Size and weight | 107 x 72 x 19 mm in aluminium case, < 150 g; PCB 80 x 60 mm |
Software | Acquisition software included; Windows and Linux libraries on request |
