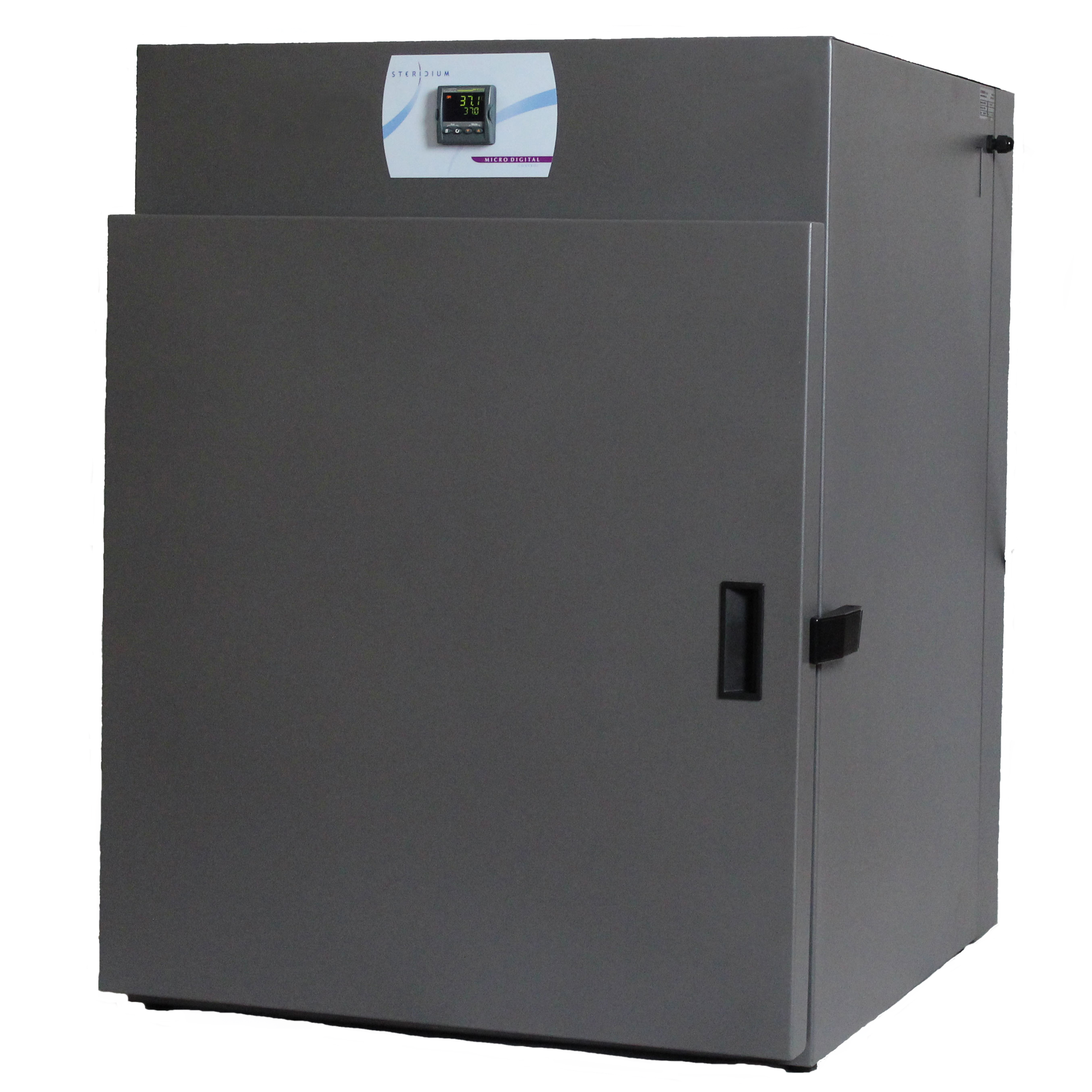

Battery Cycling Temperature Oven

An 80 litre, Australian made drying oven for battery cycling work, with a stainless steel chamber, PID control to 0.1 °C and a temperature range from ambient plus 7 °C to 135 °C.

Key specifications

Chamber capacity
80 Litres
Chamber width
435 mm
Chamber depth
375 mm
Chamber height
502 mm
Chamber material
Stainless Steel 304L
External width
541 mm
External depth
575 mm
External height
760 mm
External material
Durable epoxy powder-coated steel
Recommended clearance
75mm on sides and rear
Temperature range
(Ambient + 7C) to 135C
Temperature sensor
Pt100
Control accuracy
0.1 C
Temporal stability
0.2 C
Available shelf positions
4
Shelves supplied
2
Shelf dimensions
428 x 320 mm
Shelf spacing
100mm
Shelf capacity
15 KG
Insulation type
Mineral Wool - asbestos free
Insulation thickness
50mm
Airflow System
Moisture extraction system for high performance drying of moisture laden content utilising.
Exhaust diameter (mm)
63 - top mounted
Fresh dry air intake
Hot moist air extraction
Electrical supply
Single phase, 220 - 240V, 50 - 60 Hz (alternatives available on request)
Element rating
1.2 kW
Countdown timer
99 hr 59 min - or continuous
Controller type
Multifunction intelligent digital PID-microprocessor
Readout
Digital LCD readout of set and actual temperature
Temperature alarms
High | low | deviation
Country of origin
Australia
