SFM Series

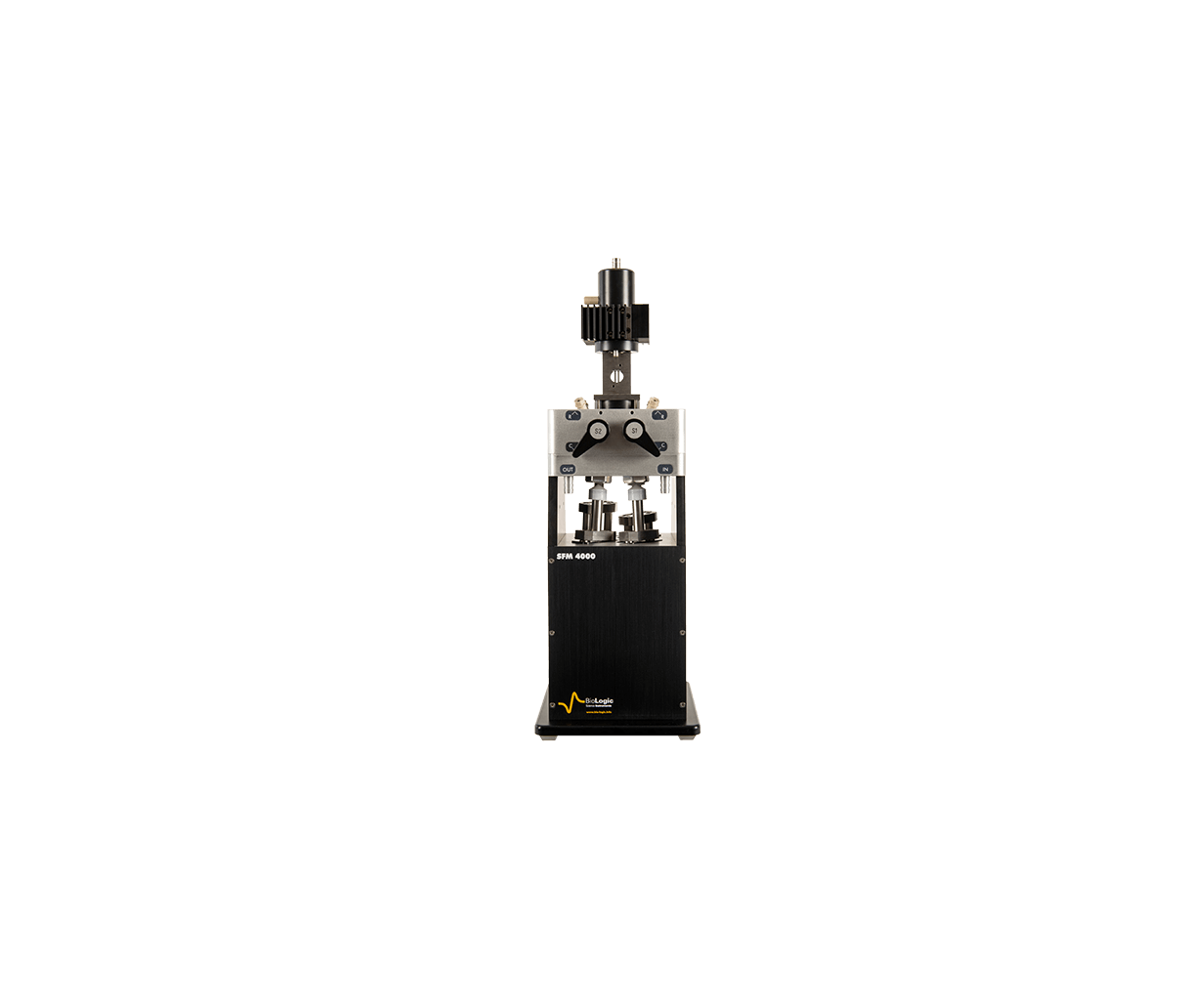

BioLogic's SFM-2000, SFM-3000 and SFM-4000 are stopped-flow systems for rapid kinetics, offering single, double or triple mixing respectively. They use two, three or four independently controlled syringes with one, two or three mixers, and each syringe is driven by its own stepping motor. That design gives fully variable mixing ratios from 1:1 to 1:100, so you can run concentration series or sequential mixing experiments without swapping hardware. Syringe volumes are user selectable, and with the microvolume cuvette the dead time drops to as little as 200 µs, short enough to follow fast enzyme turnover, protein folding and ligand binding events. Low sample consumption is another advantage when working with precious proteins. The SFM family pairs with BioLogic MOS spectrometers for absorbance, fluorescence and circular dichroism detection. Biochemistry, structural biology and physical chemistry groups in Australian universities and medical research institutes use stopped-flow to measure reactions in the millisecond range. ProDigitek provides on-site installation and training on the east coast. Contact us to configure an SFM system.

Key specifications

Mixing ratio
1:1 to 1:100, fully variable
Syringes and mixers
2, 3 or 4 independently controlled syringes and 1, 2 or 3 mixers
Dead time
Down to 200 µs with the microvolume cuvette
Syringe volumes
User selectable
