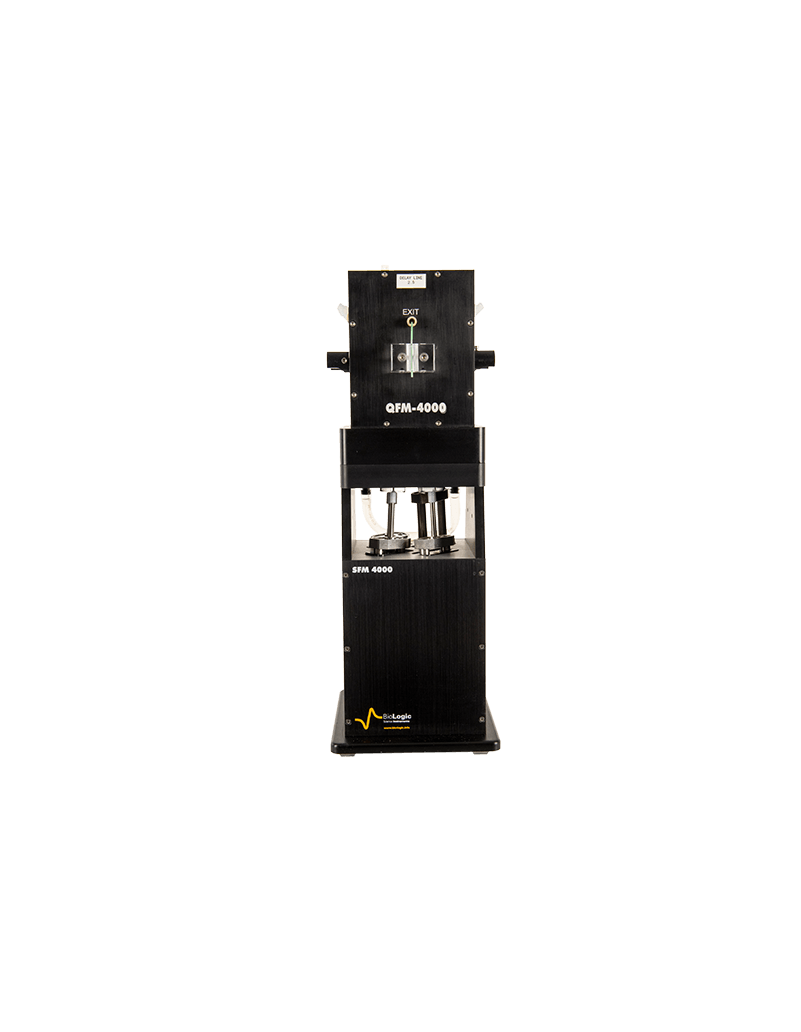

QFM-4000

The QFM-4000 is a microvolume quench flow instrument from BioLogic, used to trap and identify short-lived reaction intermediates. A reaction is started by mixing, allowed to age for a defined time, then stopped with a quenching agent so the products can be analysed offline by techniques such as HPLC, mass spectrometry or gel electrophoresis. It performs single mixing quench-flow, meaning one mixing step before the quench. Dead time is 4 ms, and each experiment uses just 10 µl of sample, with full sample recovery. A single delay line covers the full ageing time range, and no calibration is needed, which simplifies routine use. Common applications include enzymatic reactions, DNA cleavage, phosphorylation and other rapid chemical reactions where you need to know exactly which species exist at a given moment. Enzymologists, molecular biologists and chemical kineticists in Australian research institutes are the natural audience. ProDigitek sells and supports BioLogic kinetics instruments across Australia. Send us an enquiry for a QFM-4000 quote.

Key specifications

Application
Single mixing quench-flow (one mixing before the quenching step)
Dead time
4 ms
Sample volume
10 µl per experiment
Sample recovery
Full recovery of sample
Delay line
One delay line for the full ageing time range
Calibration
No calibration needed
