MTZ-35

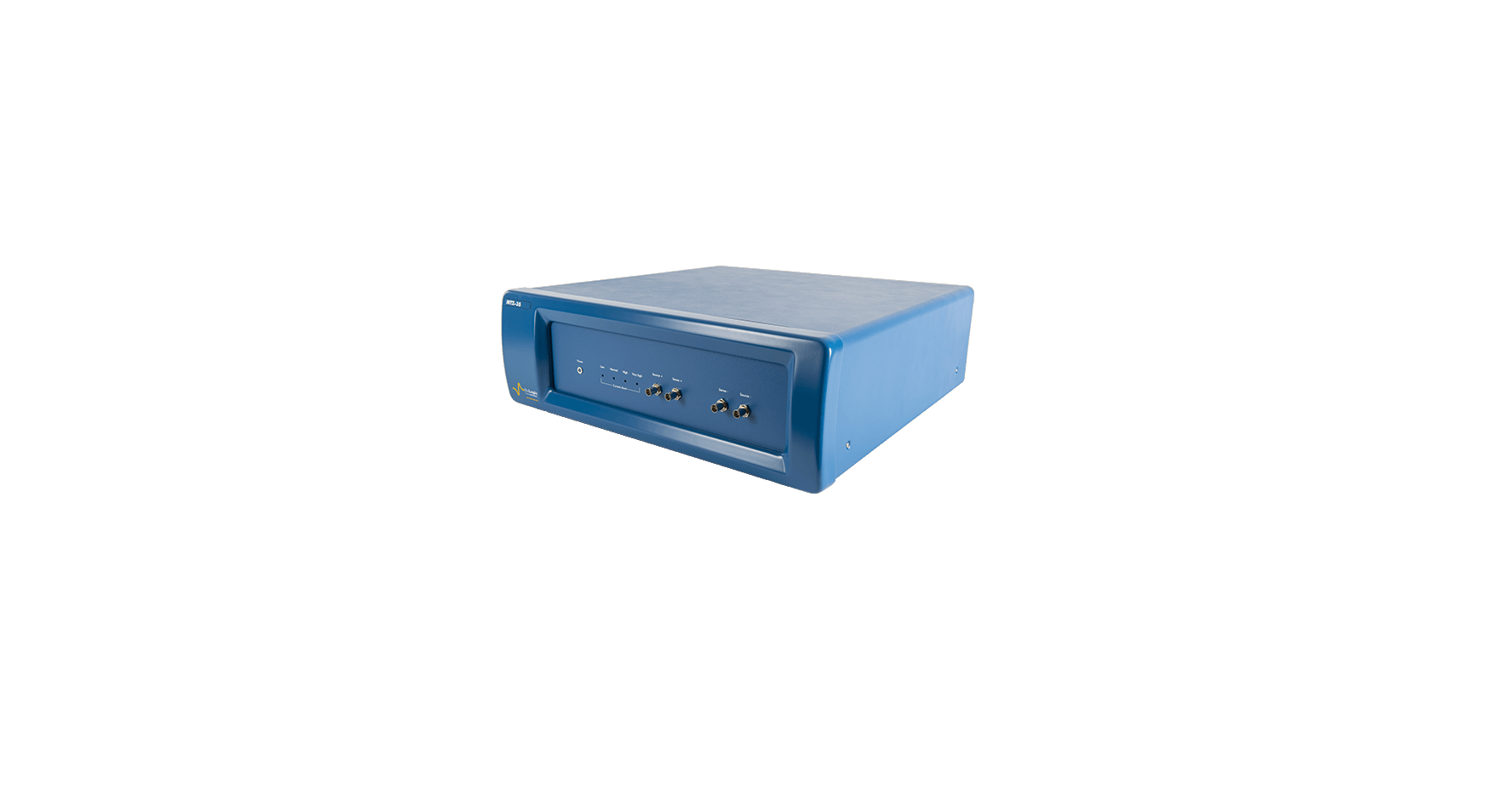

The MTZ-35 is a BioLogic impedance analyser for electrical characterisation of materials, and it sits at the heart of the company's integrated materials testing solutions. Its frequency range spans 10 µHz to 35 MHz, with basic accuracy of 0.1 % in amplitude and 0.05 % in phase. DC voltage covers ±100 µV to ±10 V, and AC amplitude runs from 100 µV to 10 V. The measurable range is broad: inductance from 10 nH to 10 kH, capacitance from 1 pF to 1000 µF and resistance from 1 mΩ to 500 MΩ. That makes it suitable for dielectrics, ceramics, polymers, ionic conductors, solid electrolytes and semiconducting materials. Combined with the HTF-1100 furnace or the ITS temperature chamber, and controlled through MT-Lab, it can map conductivity and permittivity against temperature. Australian materials science departments and solid-state battery researchers are typical users. ProDigitek offers on-site installation and training across Australia's east coast, with support nationwide. Contact us for a quote or brochure on the MTZ-35.
