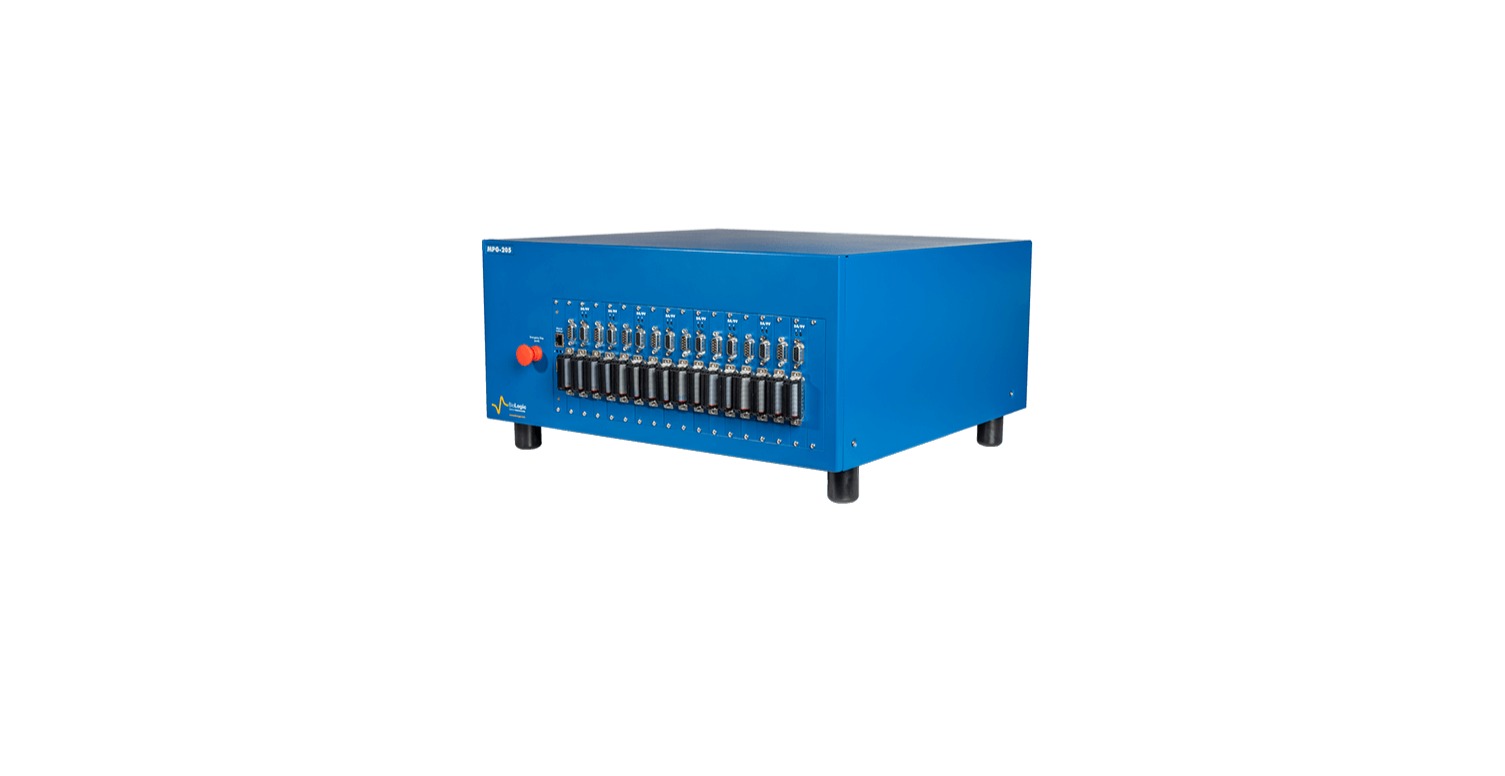

MPG-200 Series

The MPG-200 Series is a high-end battery tester range in two configurations: the MPG-2 with 16 channels at ±100 mA and the MPG-205 with 8 channels at ±5 A. EIS is available as an option on every channel.

Key specifications

Channels
MPG-2: 16; MPG-205: 8
Voltage range
MPG-2: ±10 V; MPG-205: -2 V to 9 V
Maximum current per channel (continuous)
MPG-2: ±100 mA; MPG-205: ±5 A
Current ranges
MPG-2: 5, from 100 mA down to 10 µA; MPG-205: 7, from 5 A down to 10 µA
Voltage control resolution
200 µV down to 5 µV
Accuracy
±0.1 % of control ±0.01 % of FSR
EIS
Optional, simultaneously on every channel, 10 µHz to 100 kHz
Acquisition time
200 µs
