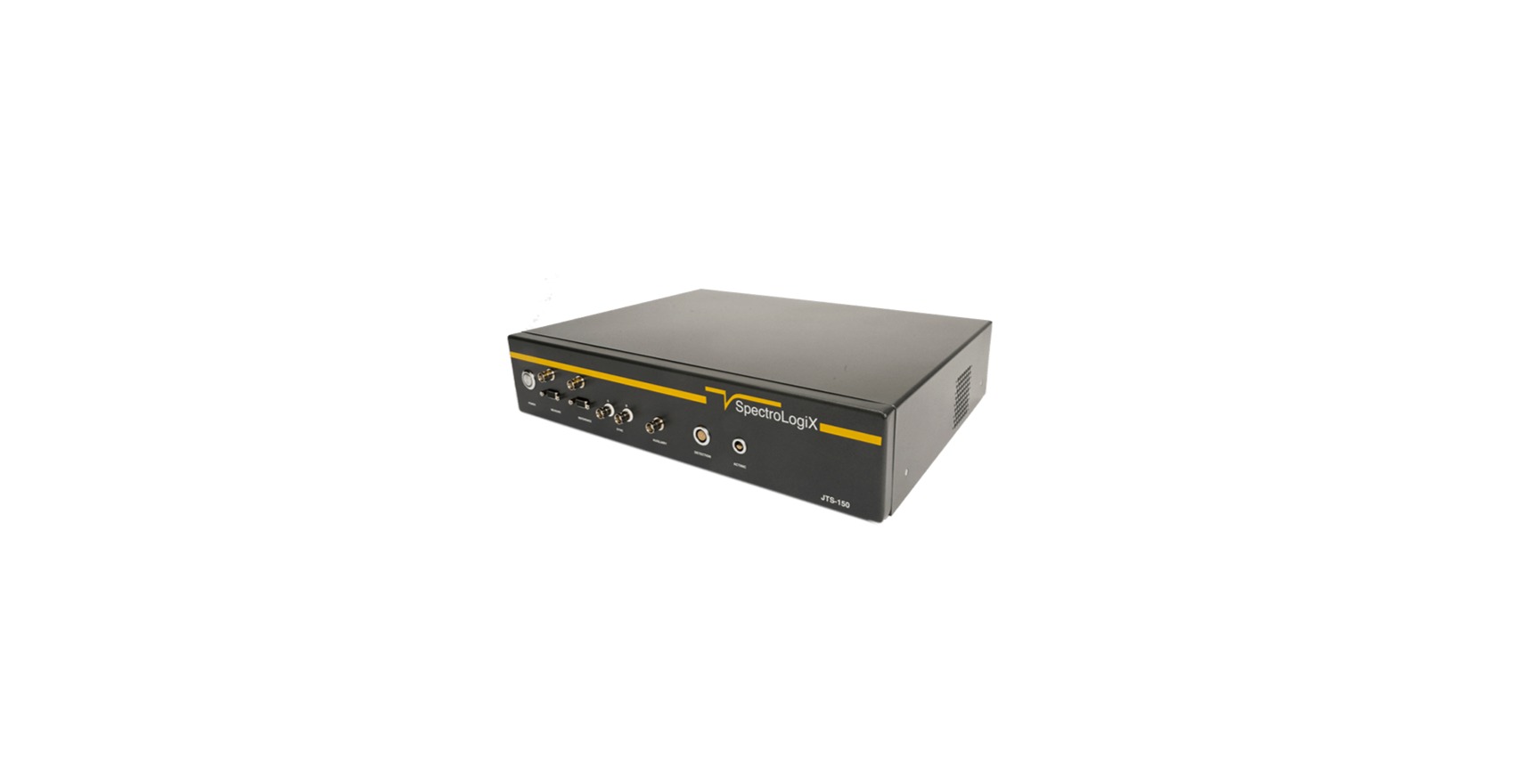

JTS-150

The JTS-150 is a pump probe absorbance and fluorescence spectrometer from BioLogic, built specifically for photosynthesis research. It can measure up to nine wavelengths per experiment at a 100 ns event timing resolution, on either leaf or liquid samples. That lets plant scientists and biophysicists follow electron transfer through photosystems, cytochrome activity and the response of the photosynthetic apparatus to light stress. Actinic illumination comes from a dual ring LED at 630 and 720 nm, adjustable from 0 to 5000 µE. Two large area detectors use high speed photodiodes, with 18 bit ADC resolution. The Smart-Lamp offers wavelengths of 470, 517, 546, 554, 563, 574, 705 and 740 nm. Australia has strong research programs in crop productivity, algal biotechnology and plant responses to heat and drought, making non-invasive photosynthesis measurement highly relevant. The JTS-150 is equally useful for studying cyanobacteria and microalgae in suspension. For more on the JTS-150, or a formal quote, reach out to ProDigitek.

Key specifications

Actinic LED
Dual ring, 630/720 nm
Light intensity range
0 to 5000 µE
Detectors
Two large area detectors with high speed photodiodes
ADC resolution
18 bit
Event timing resolution
100 ns
Smart-Lamp wavelengths
470, 517, 546, 554, 563, 574, 705 and 740 nm
