ITS

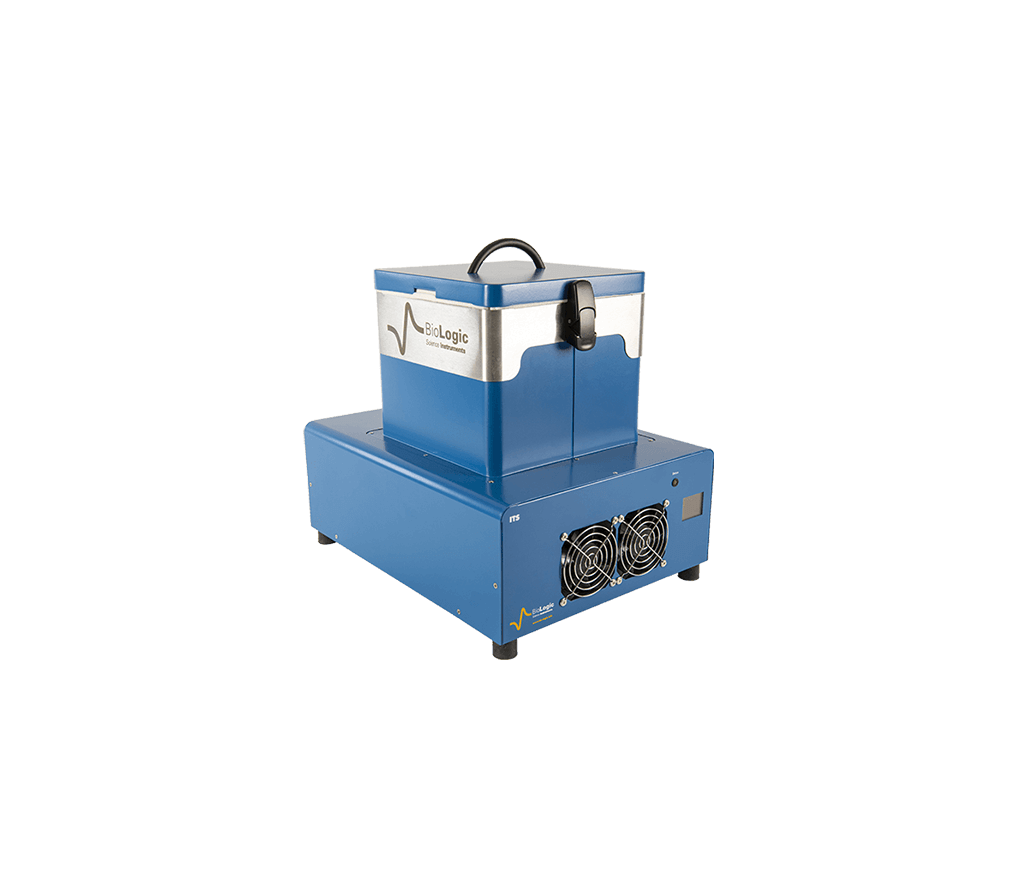

BioLogic's Intermediate Temperature System, or ITS, is a compact Peltier temperature chamber that holds samples anywhere from -35 °C to +150 °C with ±0.3 °C accuracy. It is designed for impedance measurements on materials, so you can study how conductivity, permittivity and relaxation behaviour change with temperature without needing a large furnace or cryostat. The ITS works with both MT-Lab and EC-Lab software, which makes it a natural companion to the MTZ-35 impedance analyser as well as BioLogic potentiostats. It connects to a computer by USB 2.0, runs on 115 V or 230 V at 50/60 Hz and draws 250 W. At 400 x 313 x 385 mm and 8 kg, it fits easily on a bench. Typical applications include polymer electrolytes, battery separators, dielectric films and pharmaceutical materials, where behaviour around room temperature and below is important. ProDigitek sells and supports the ITS right around Australia. Ask us to send through the brochure or a price.
