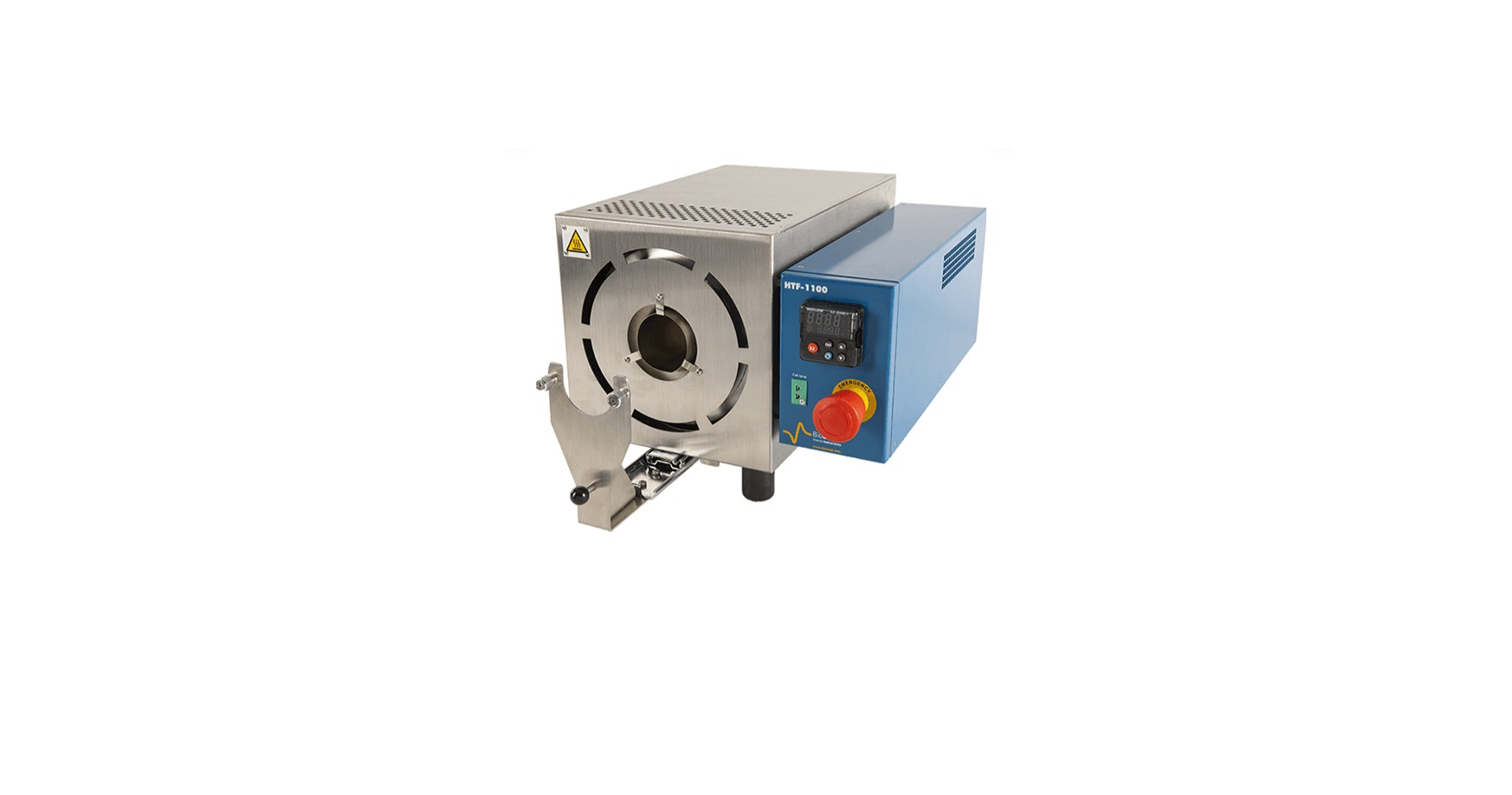

HTF-1100

The HTF-1100 is a horizontal laboratory tube furnace from BioLogic for heat treatment and for electrical characterisation of materials from ambient up to 1100 °C. Paired with an MTZ-35 impedance analyser and controlled by MT-Lab, it lets you measure conductivity and dielectric properties across a wide temperature sweep, an essential step when studying solid oxide fuel cell components, ceramic electrolytes and ion conductors. Heating comes from Super Kanthal 1350 °C wire built into a cement cylinder, insulated with alumina fibre. A Watlow PM6 PID controller with a K-type thermocouple gives temperature control accuracy better than ±1 °C, and scan rates are adjustable from 0.1 °C/min to 20 °C/min. Safety features include an emergency stop button, an audible alarm and a temperature safety limit. Researchers in ceramics, energy materials and geoscience will find it a practical bench instrument for controlled heating. For HTF-1100 pricing, or to talk through a combined MTZ-35 package, contact ProDigitek.
