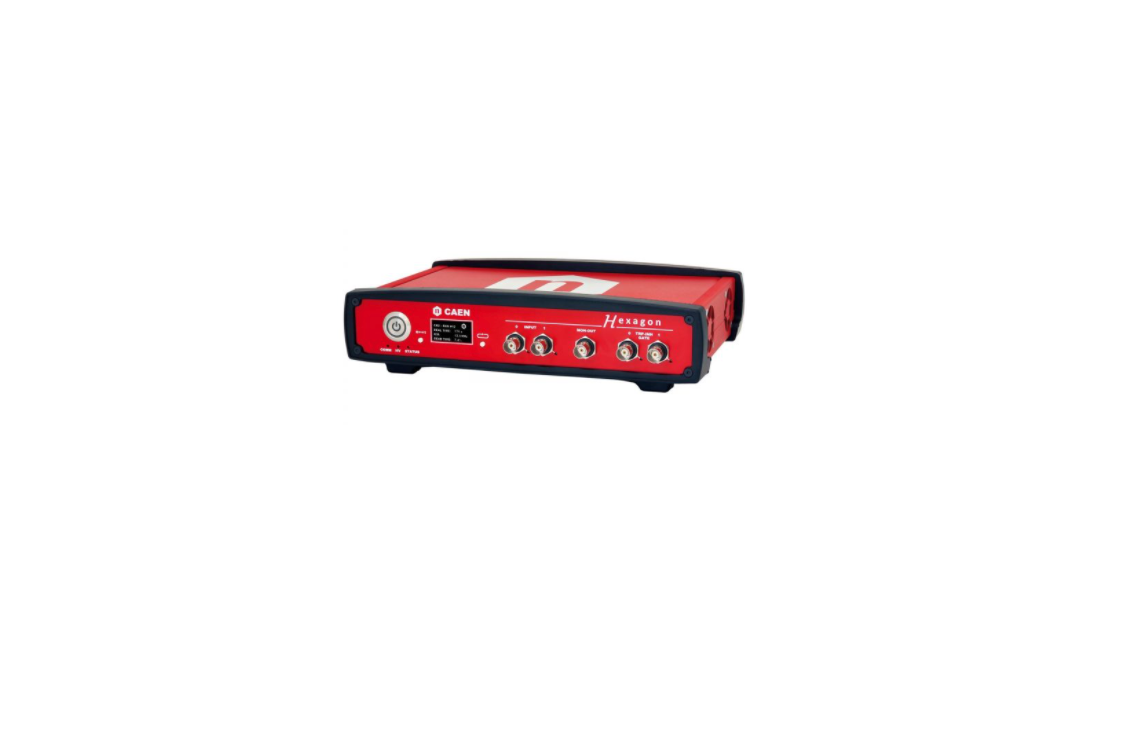

Hexagon

Hexagon is a stand-alone single or dual 32k digital MCA for high resolution spectroscopy with HPGe, CZT, silicon and scintillation detectors. It includes detector HV bias and is controlled by Quantus software.

Key specifications

Inputs
2 (dual) or 1 (single)
Channels
32k
HV output
±5 kV/30 µA, ±2 kV/1 mA or ±500 V/50 µA, selectable
ADC
16 bit, 100 MS/s
Throughput
Tested up to 200 kcps
Acquisition modes
Signal Inspector, List Mode, PHA, Coincidence
Interfaces
USB 2.0, Ethernet
Size and weight
262 W x 66.2 H x 195 L mm (including connectors), 1400 g
