HCV-3048

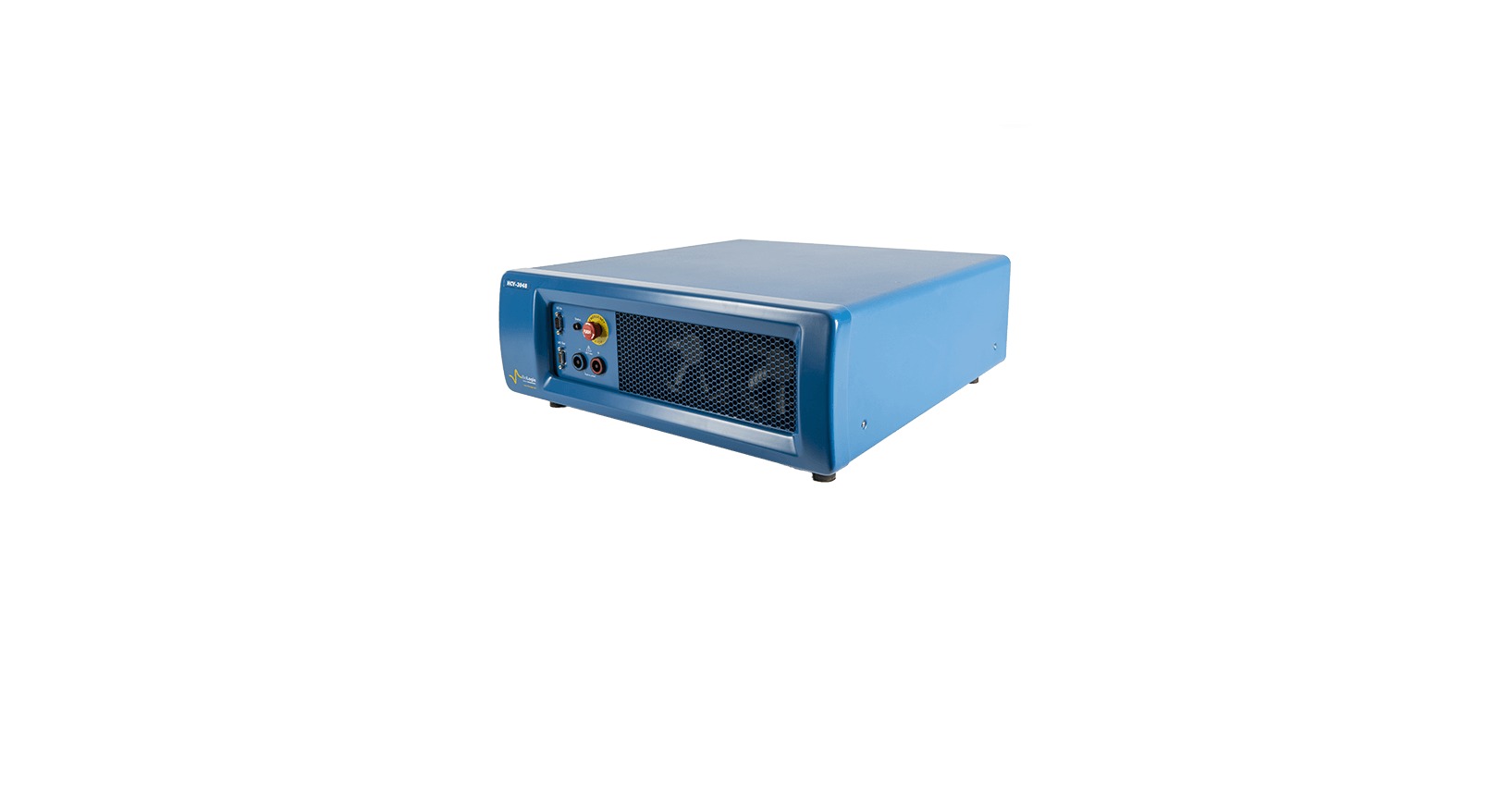

The HCV-3048 is a BioLogic current and voltage booster aimed at battery pack characterisation. Each unit supplies ±30 A continuous over 0 to 48 V, and four units in parallel extend this to ±120 A. Three current ranges (0.3 A, 3 A and 30 A) keep resolution useful at lower currents too. With 800 kHz bandwidth and a rise and fall time under 3 µs from 0 to 48 V, it supports impedance spectroscopy from 500 kHz down to 10 µHz, a wider frequency span than many high current boosters. Voltage accuracy is 0.03 % of range plus 0.03 % of reading, and current accuracy is 0.1 % of range plus 0.3 % of reading. The unit draws 2000 W from a 200 to 264 V supply at 47 to 440 Hz, measures 400 x 430 x 135 mm and weighs 26 kg. It pairs with Premium range potentiostats such as the SP-200 and SP-300. It suits pack testing, automotive research and high voltage supercapacitor work. Let ProDigitek know your pack voltage and we'll put together a proposal.
Key specifications
Maximum current | ±30 A per unit, ±120 A with 4 units in parallel |
Voltage range | 0 to 48 V |
Current ranges | 0.3 A / 3 A / 30 A |
Voltage accuracy | 0.03 % + 0.03 % (range + reading) |
Current accuracy | 0.1 % + 0.3 % (range + reading) |
EIS frequency range | 500 kHz to 10 µHz |
Rise/fall time | < 3 µs (0 to 48 V) |
Bandwidth | 800 kHz |
Power consumption | 2000 W, 200 to 264 V, 47 to 440 Hz |
Dimensions and weight | 400 x 430 x 135 mm (L x W x H), 26 kg |
