Environmental TriCell

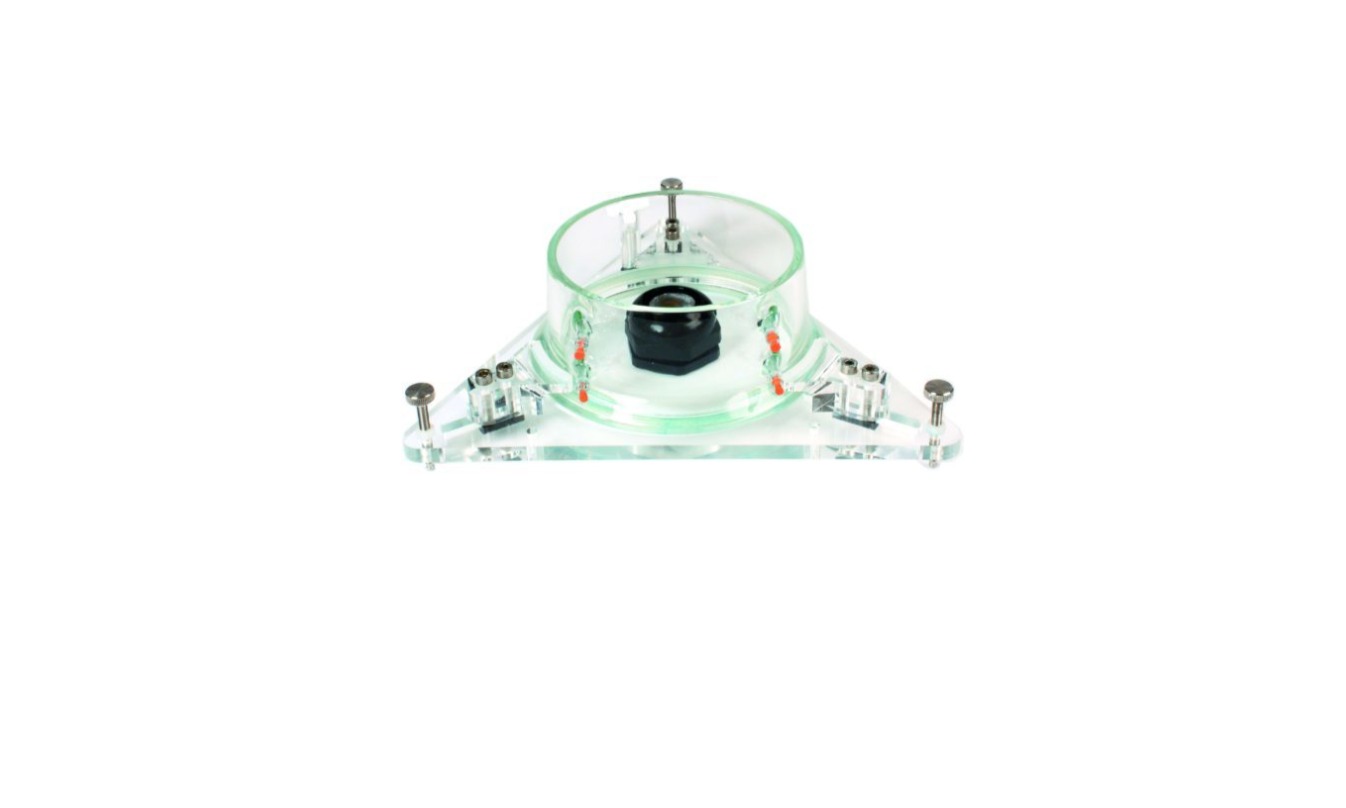

The Environmental TriCell is a flexible sample platform for the M470 scanning electrochemical workstation, supporting SKP, LEIS, SVET and SDC measurements. It is particularly suited to corrosion and coatings research, where samples vary widely in size and shape. The base is a triangular perspex plate with 316 mm sides, fitted with level adjusters that offer 33 mm of extension, so the sample can be set flat relative to the probe. A 143 x 60 mm glass cell includes gas and liquid ports and an O-ring seal, held by a cell clamp. A holder accepts 32 mm diameter metallurgical samples, a flexible sealing gaiter helps maintain the environment, and a PTFE sealing disk allows organic electrolytes to be used. Controlling the atmosphere above the sample helps reproduce real exposure conditions, such as humidity in atmospheric corrosion studies. Australian researchers working on infrastructure, marine and mining materials will see the relevance. Ask ProDigitek for TriCell pricing or details on M470 compatibility.
Key specifications
Base plate | Triangular perspex base plate, 316 mm side length |
Level adjusters | Base plate level adjusters, 33 mm extension range |
Glass cell | Glass cell, 143 x 60 mm, including gas and liquid ports; O-ring seal |
Cell clamp | Cell clamp |
Sample holder | Sample holder for 32mm diameter metallurgical samples |
Sealing gaiter | Flexible cell sealing gaiter |
Sealing disk | PTFE sealing disk to allow use of organic electrolytes |
