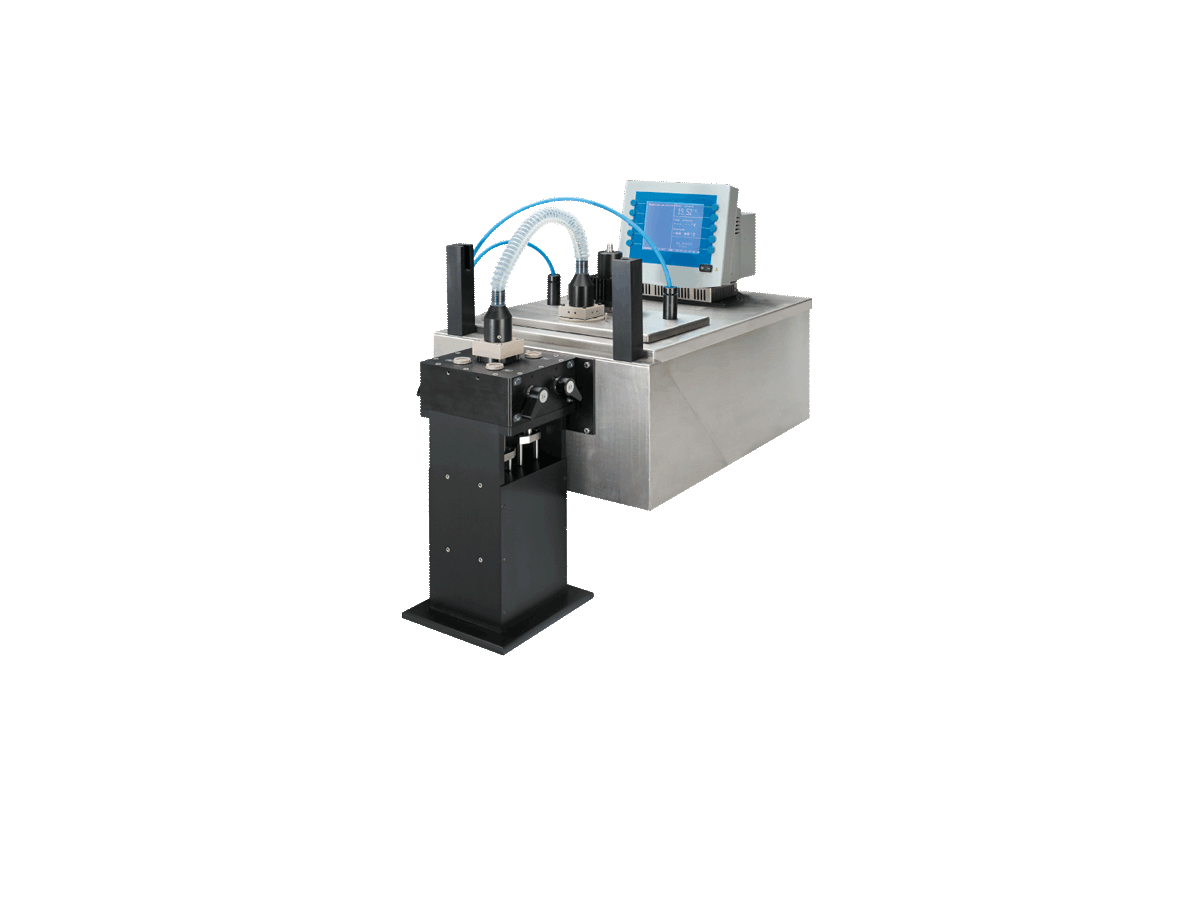

Cryogenic Stopped-Flow
Some reactions are simply too fast to capture at room temperature. BioLogic's cryogenic stopped-flow option tackles this by extending the operating range of its stopped-flow systems below the usual -15 °C limit, all the way down to -90 °C. Cooling slows the reaction enough that intermediates can be observed and rate constants measured. The upper limit is +20 °C, and cooling is provided by either a cryostat or liquid nitrogen. Single and double mixing are both supported, so sequential mixing experiments remain possible at low temperature. Dead time is 2 ms, and mixing ratios range from 1:1 to 1:5. Typical users include inorganic, bioinorganic and organometallic chemists, along with enzymologists, whose reactions are otherwise over before a conventional instrument can record them. Available official detail on this option is limited, so we can obtain configuration notes from BioLogic for your specific application. If low temperature kinetics would help your research, ask ProDigitek for a quote.

Key specifications
Cooling | Cryostat or liquid nitrogen |
Mixing | Single and double mixing |
Temperature range | -90 °C to +20 °C |
Dead time | 2 ms |
Mixing ratio | 1:1 to 1:5 |
