BCS-800 Series

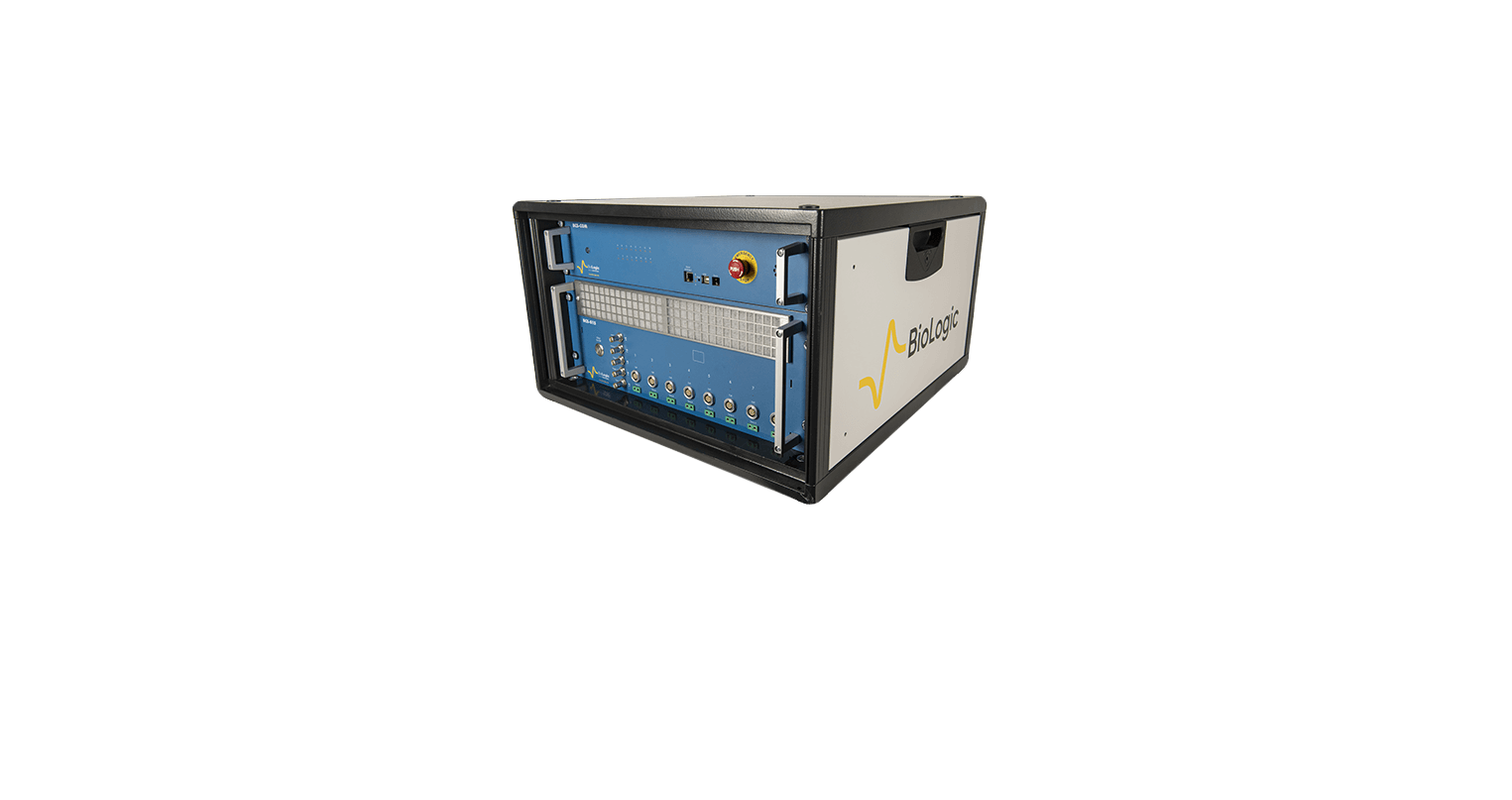

The BCS-800 Series is a modular BioLogic battery testing system used everywhere from early R&D through pilot production to quality control. Three modules are available, each with eight independent channels: the BCS-805 at ±150 mA per channel, the BCS-810 at ±1.5 A and the BCS-815 at ±15 A. On the BCS-815, eight channels can be paralleled for up to ±120 A. Voltage range is 0 to 10 V on the BCS-805 and BCS-810, or 0 to 9 V on the BCS-815. Voltage measurement resolution is 40 µV (18 bit), each module has five current ranges and acquisition time is 2 ms. Every module includes impedance spectroscopy from 10 kHz to 10 mHz, and the BCS-810 and BCS-815 add a K-type thermocouple input on each channel covering -25 °C to +200 °C. Please note that BioLogic has released the BCS-900 Series as its successor, so new systems are generally specified on that platform. ProDigitek can still advise on existing BCS-800 installations. Get in touch about upgrades, support or a BCS-900 quote.
Key specifications
Modules | BCS-805, BCS-810 and BCS-815, 8 independent channels each |
Maximum current per channel | ±150 mA (BCS-805), ±1.5 A (BCS-810), ±15 A (BCS-815) |
Parallel operation | Up to ±120 A with 8 channels (BCS-815) |
Voltage range | 0 to 10 V (BCS-805, BCS-810); 0 to 9 V (BCS-815) |
Voltage measurement resolution | 40 µV (18 bit) |
Current ranges | 5 ranges per module |
EIS | Built in on each module, 10 kHz to 10 mHz |
Acquisition time | 2 ms |
Temperature measurement | K-type thermocouple on each channel (BCS-810, BCS-815), -25 °C to +200 °C |
