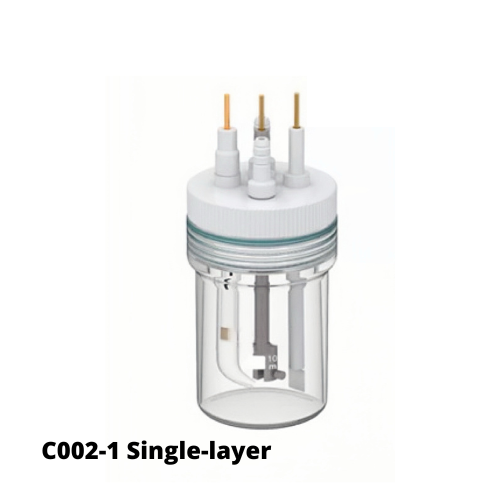

Straight Five-port Electrochemical Cell, C002-1 Single-layer

Description:

• This cell is often used in a 3-electrode system, with a customizable volume of 30ml to 500ml.

• Glass and electrode area seals via O-rings and screws.

• The cell is equipped with a sand core salt bridge or Luggin capillary.

• The electrochemical cell is equipped with air inlet and outlet holes, and the air inlet is equipped with a bubbler that creates different atmospheres for various experiments.

• The jacket layer allows a constant temperature through water circulation on top of the single layer design.

• The cover is made of PTFE. According to the volume of the electrochemical cell , the size of the cover is different. The diameter of the inner screw cover is basically divided into 35mm, 50mm, 60mm and 70mm

This electrochemical cell does not come with electrodes.

Option notes:

• Custom Luggin Capillary: please indicate the electrochemical cell model in the order notes when placing your order.
