SP-150
A versatile, high-specification, research grade instrument that can be modified for EIS.
​
Based on a modular chassis, this instrument can be customized to address every possible application in the field of classical electrochemistry.
.png)

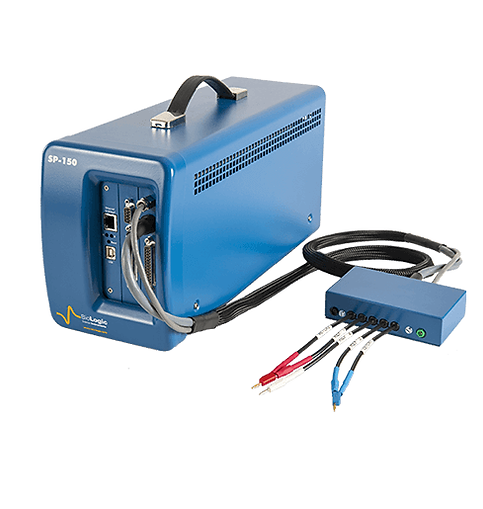

The SP-150 is a versatile, high-specification, research grade potentiostat.
​
With its modular chassis, this electrochemical workstation can be customized to address every possible application in the field of classical electrochemistry.
The SP-150 potentiostat be configured at point of purchase to include an EIS-capable module, and a low current option (1 nA full scale range).
It can also be connected to external high current boosters (2, 5, 10, 20, 80 and 100 A) or the FlexP series.
SP-150 Specifications
​
Voltage
-
Control voltage: ±10 V adjustable between[-20; to +20] V (standard); up to 60 V with FlexP0060/FlexP0160
-
Voltage resolution: 5 µV on 200 mV range
-
Compliance: ±10 V adjustable between [-20; to +20] V (standard)
Current
-
Current ranges: 800 mA to 10 µA (standard); down to 1 nA (Low Current)
-
Maximum current: ±800 mA; up to 800 A with four FlexP0012
-
Current resolution: 0.760 nA; down to 76 fA (Low Current)
EIS
-
Frequency range: 1 MHz down to 10 µHz
Advanced
-
Connection 2,3,4,5 terminal lead
-
Best acquisition time: 20 µs with EC-Lab Express;
-
Stability control mode (7 bandwidths)
