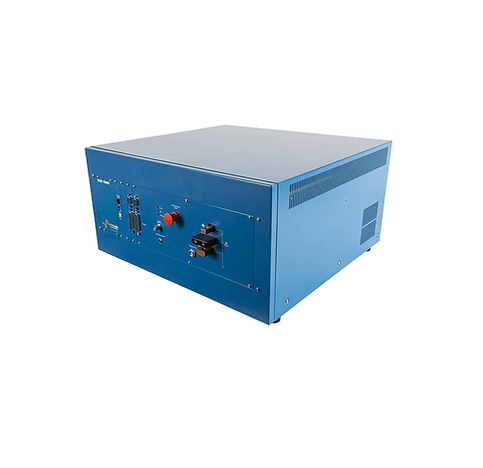

HCP-1005
1 channel - More power for battery testing

A compact high-current potentiostat/galvanostat/FRA specifically designed to study high-capacity secondary batteries


Power and precision: Ideal for battery testing.

The HCP-1005 is a compact high-current potentiostat/galvanostat/FRA specifically designed to study high-capacity secondary batteries

With a voltage range of 0.6 to 5 V and a current range of ±100 A, this unit is perfect for Li-ion battery tests.

The EIS capability integrated in the chassis also makes it ideal for to follow up the performances of the cell during ageing tests.

The HCP-1005 combines the precision and control of a research-grade potentiostat with the power of a 100 A booster in the same chassis.

HCP-1005 Specifications

  • Current ranges up to +/-100 A

  • Voltage range: 0.6 – 5 V

  • EIS capability from 10 µHz to 10 kHz and up to 1 MHz without booster

  • Control software: EC-Lab®

  • Disconnectable current booster to use the system as a research-grade potentiostat
